1.5 HP Elite TEFC Stainless Salzer Wired Motor

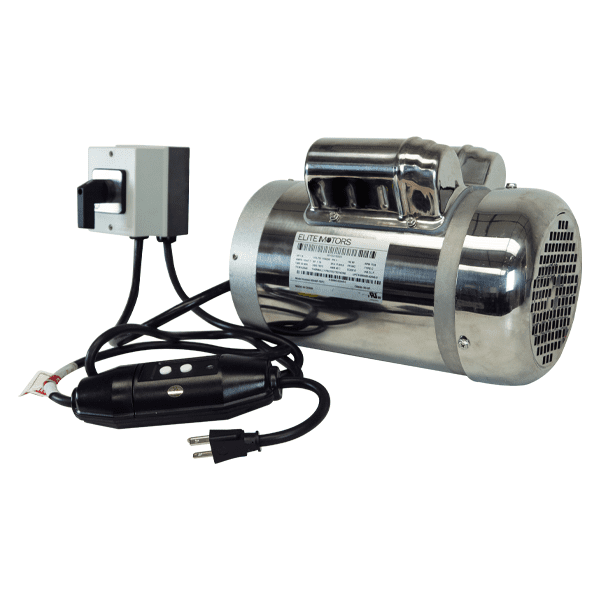

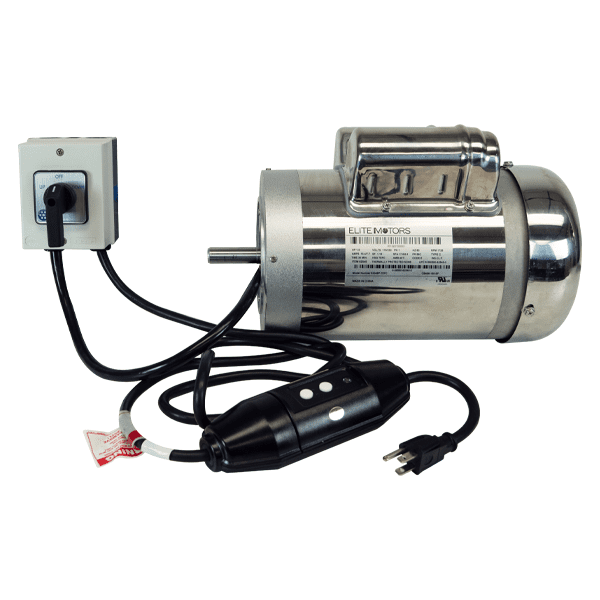

The 1.5 HP Elite TEFC Stainless Salzer Wired Motor is a single-phase, dual-voltage boat lift motor. It has a stainless steel housing. The motor is made to be mounted directly onto gearboxes, such as the A-Drive and E-Drive gearboxes, without needing a separate base. These motors are ideal for use in boat houses and areas with limited ventilation. The motor housing is made out of stainless steel with aluminum end bells.
You can choose between a Salzer maintained (lock-on) or momentary (spring-loaded) boat lift switch. Both switches are connected with 14/5 SJTW control cable, with the in-line GFCI located 4 1/2 inches away from the plug. The type of plug and GFCI wired to the wiring harness depends on your motor voltage selection.
The motor has a power rating of 1.5 horsepower (HP) and can run on either 115 volts or 230 volts. When running on 115 volts, it draws 15.4 amps, and on 230 volts, it draws 7.7 amps. It spins at a speed of 1725 revolutions per minute (RPM) with a frequency of 60 Hz. It belongs to frame 56c and has a service factor of 1.15. The motor can handle up to 17.6 amps at 115 volts or 8.8 amps at 230 volts. It can operate in an ambient temperature of up to 40°C for a maximum of 30 minutes. The housing is Totally Enclosed Fan Cooled (TEFC) with a code of E. It has insulation class F and is recognized by UL with a C-UL-US stamp.
Totally Enclosed Fan Cooled (TEFC)
A Totally Enclosed Fan Cooled motor is an electric motor that is enclosed to prevent the ingress of foreign particles (such as dust and moisture) and is equipped with an external fan for cooling. Unlike Totally Enclosed Non-Ventilated (TENV) motors, TEFC motors use an external fan to circulate air over the motor, helping to dissipate heat generated during operation.
TEFC motors are commonly used in various industrial applications where a higher level of protection against environmental factors is required. The enclosed design with a fan helps maintain the motor’s internal components at a suitable temperature, ensuring efficient and reliable operation.
Specifications
General Specifications |
|||
---|---|---|---|
Weight: | 37.35 lbs. | Individual Box Size: | 15 in. x 10 in. x 10 in. |
Product Length: | 11.75 in. | Product Width: | 6.50 in. |
Product Height: | 8.75 in. | Shaft Width: | 0.625 in. |
Shaft Length: | 2 in. | Country of Origin: | China |
Model #: | 93049 | Retail SKU: | 93100 |
Nameplate Specifications |
|||
HP: | 1.5 | Voltage: | Dual (115v / 230v) |
Phase: | 1 | Amps: | 15.4 (115v) / 7.7 (230v) |
RPM: | 1725 | Hz: | 60 |
Frame: | 56c | Service Factor: | 1.15 |
SFA: | 17.6 (115v) / 8.8 (230v) | Type: | C |
AMB: | 40°c | Time: | 30 MIN |
HSG: | TEFC | Code: | E |
Insulation: | F | Thermally Protected: | None |
UL: | Recognized | UL Stamp: | C-UL-US |
Technical Specifications |
|||
Electrical Type: | Capcitor Start | Rotation: | Selective |
Shaft Type: | NEMA 56 | Shaft Extension: | 1.88 in. |
Frame Length: | 10.0 in. | Mounting: | Round |
Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
Frame Material: | Stainless Steel | Replacement Capacitor: | 800 uF |
Capacitor SKU #: | BH02246 | Keystock: | Included |
Keystock Length: | 1 5/16 in. | Keystock Width: | 3/16 in. |
Boat Lift Switch Specifications |
|||
Maintained |
Momentary |
||
Model #: | CA0200034I-B96IQ6R | Model #: | CA0200037I-B96IQ6R |
Retail SKU #: | BH09014 | Retail SKU #: | BH09015 |
Weight: | 1.25 lbs. | Weight: | 1.25 lbs. |
Box Color: | Light Grey | Box Color: | Light Grey |
Housing Length: | 4.5 in. | Housing Length: | 4.5 in. |
Housing Width: | 3.5 in. | Housing Width: | 3.5 in. |
Housing Height: | 4.5 in. | Housing Height: | 4.5 in. |
Handle Color: | Red | Handle Color: | Red |
Handle Length: | 3.0 in. | Handle Length: | 3.0 in. |
Handle Width: | 1.1875 in. | Handle Width: | 1.1875 in. |
Handle Height: | 1.3125 in. | Handle Height: | 1.3125 in. |
Country of Origin: | Italy | Country of Origin: | Italy |
Technical Specifications |
|||
Maintained |
Momentary |
||
Amps: | 20 | Amps: | 20 |
VAC | 600 | VAC | 600 |
Torque: | Tight | Torque: | Tight |
Certification: | EN 60947-3 | Certification: | EN 60947-3 |
Certification: | CE | Certification: | CE |
Certification: | C-UL-US Listed | Certification: | C-UL-US Listed |
Cam Diagram |
|||
— | 230v | 400v | 690v |
AC3-kW(A) 1 ph | — | 3.7(12) | — |
AC3-kW(A) 3 ph | 4(13) | 7.5(14) | 7.6(8) |
AC-23-kW(A) 1 ph | 3(17) | — | — |
AC-23-kW(A) 3 ph | 6.5(17) | 9(9) | 9(9) |
VAC Diagram |
|||
HP/V | 1 ph | 3 ph | — |
120 | 1.6 | — | — |
200 | — | 5 | — |
240 | 3 | 7.5 | — |
480 | — | 10 | — |
600 | — | 10 | — |
GFCI Wire Harness Specifications |
|||
110v | 220v | ||
Manufacturer: | Southwire Company | Manufacturer: | Southwire Company |
Plug Type: | 3-US 110 V Standard | Plug Type: | US 240 Volt NEMA 6-15 |
VAC: | 125 | VAC: | 240 |
Hz: | 60 | Hz: | 50/60 |
Amps: | 15 | Amps: | 15 |
Watts: | 1875 | Watts: | 3600 |
Type: | Rainproof Class A | Type: | Rainproof Class A |
GFCI Type: | In-line | GFCI Type: | In-line |
Cable Type: | 14/5 SJTW | Cable Type: | 14/5 SJTW |
GFCI to Plug: | 4.5 in. | GFCI to Plug: | 4.5 in. |
Cord Diameter Range: | 0.28 – 0.65 in. | Cord Diameter Range: | 0.28 – 0.65 in. |
Country of Origin: | Honduras | Country of Origin: | Honduras |
UL: | Listed | UL: | Listed |
CSA: | Certified | CSA: | Certified |
Reset Button: | Yes | Reset Button: | Yes |
Reset Type: | Automatic | Reset Type: | Automatic |
BH-USA SKU: | 12211 | BH-USA SKU: | 12228 |
Catalog #: | 303385214 | Catalog #: | 25090 |
Product Overview
- TEFC enclosure prevents overheating
- Durable stainless steel frame, capacitor case, and conduit box cover
- Double-shielded bearings extend the service life of the motor
- Time rated 30-minute duty cycle
- UL Recognized & CSA Approved
- Suitable for enclosed environments
