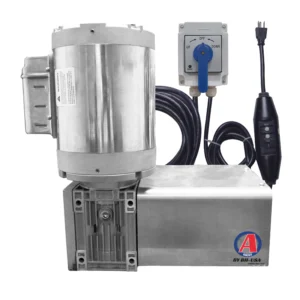

1,500 lb. Belt-Driven PWC Hoist

The 1,500 lb. Belt-Driven PWC Hoist is made with a belt-driven gearbox and an electric motor. The hoist includes an in-line GFCI wired to a momentary (spring-loaded) drum switch and 6 ft. of control cable from the motor to the 110v plug. Designed for the BH-360, but will work with other brands of PWC lifts.

Features a Bronze Single Thread PWC Worm, 3/4 in. Drive Shaft Collar, and all stainless steel fasteners.  No steel-on-steel moving parts. Designed with a 48-tooth 6 in. PWC hoist cast iron worm gear. The bronze gear turns its own cable drum on the bronze bearing. Mounted into a strong, powder-coated white steel housing. 56 frame electric motor mounting slots are on top of the unit. The 26 in. drive belt runs on the motor pulley and 7 in. hoist pulley to turn the gears. 48:1 gear ratio. 1/4 in. grease fitting. Includes hoist cover.

Only works with Elite & Marathon 3/4 HP clawfoot electric motors.

PWC Lift Compatibility:

BH-360, Breeze, Tide Tamer Swinger, BLUS Up-n-Over, Dock Shuttle (with bracket). Virtually any dockside cable-driven PWC lift.

Specifications

Gearbox Specifications

Lifting Capacity: 1,500 lbs. Weight: 28 lbs.
Gear Ratio: 48:1 Gearbox Length: 7 in.
Gear Material: Cast Iron Gearbox Width: 8.5 in.
Gear Size: 6 in. Gearbox Height: 9.5 in.
Motor Type: With Base Manufacturer: BH-USA

Gearbox Technical Specifications

Worm Material: Hardened Bronze Worm Thread: Single
Worm Bore: 0.75 in. (3/4 in.) Worm Keystock Groove: 0.1875 in. (3/16 in.)
Gear Tooth Size: 48 Winch Mount Pattern: 3 Hole
Hoist Pulley Size: 7 in. Pulley Material: Die-Cast
Pulley Belt Width: 0.75 in. (3/4 in.) Belt Size: 26 in.
Belt Type: Cogged Collar Size: 0.75 in. (3/4 in.)
Collar Set Screw Size: 0.3125 in. (5/16 in.) Fasteners Material: Stainless Steel
Bolt Type: Hex Head Grease Fitting Size: 0.25 in. (1/4 in.)
Spool Drum Diameter: 1.5 in. Spool Drum OD: 3.6875 in. (3 11/16 in.)

Electric Motor Specifications

Weight: 20.55 lbs. Individual Box Size: 15 in. x 10 in. x 10 in.
Product Length: 10.75 in. Product Width: 6.75 in.
Product Height: 8.50 in. Shaft Width: 0.625 in.
Shaft Length: 2 in. Country of Origin: China
Model #: 93197 Retail SKU: 79601

Motor Nameplate Specifications

HP: 0.75 (3/4) Voltage: Dual (115v / 230v)
Phase: 1 Amps: 10.8 (115v) / 5.4 (230v)
RPM: 1725 Hz: 60
Frame: 56 Service Factor: 1.0
SFA: N/A Type: C
AMB: 40°c Time: 15 MIN
HSG: TENV Code: L
Insulation: B Thermally Protected: None
UL: Recognized UL Stamp: cRUus

Motor Technical Specifications

Electrical Type: Capcitor Start Rotation: Selective
Shaft Type: NEMA 56 Shaft Extension: 1.88 in.
Frame Length: 7.1875 in. Mounting: Resilient Base – Extended Studs
Drive End Bearing: Ball Opp Drive End Bearing: Ball
Frame Material: Rolled Steel Replacement Capacitor: 465 uF
Capacitor SKU #: BH02247 Keystock: Included
Keystock Length: 1 in. Keystock Width: 0.25 in.

Switch Specifications

Momentary
Model #: CA0200034I-B96IQ6R BH-USA SKU #: BH09015
Housing Length: 4.5 in. Handle Length: 3 in.
Housing Width: 3.5 in. Handle Width: 1.1875 in.
Housing Height: 4.5 in. Handle Height: 1.3125 in.
Box Color: Light Grey Handle Color: Red
Country of Origin: Italy Weight: 1.25 lbs.

Switch Technical Specifications

110v
Amps: 20 Certification: EN 60947-3
VAC 600 Certification: CE
Torque: Tight Certification: C-UL-US Listed

Cam Diagram

230v 400v 690v
AC3-kW(A) 1 ph 3.7(12)
AC3-kW(A) 3 ph 4(13) 7.5(14) 7.6(8)
AC-23-kW(A) 1 ph 3(17)
AC-23-kW(A) 3 ph 6.5(17) 9(9) 9(9)

VAC Diagram

HP/V 1 ph 3 ph
120 1.6   —
200  — 5
240 3 7.5
480  — 10
600  — 10

GFCI Wire Harness Specifications

110v
Manufacturer: Southwire Company GFCI to Plug: 4.5 in.
Plug Type: 3-US 110 V Standard Cord Dia. Range: 0.28 in. – 0.65 in.
VAC: 125 Country of Origin: Honduras
Hz: 60 UL: Listed
Amps: 15 CSA: Certified
Watts: 1875 Reset Button: Yes
Type: Rainproof Class A Reset Type: Automatic
GFCI Type: In-line BH-USA SKU: 12211
Cable Type: 14/5 SJTW Catalog #: 303385214

Product Overview

  • 1,500 lb. straight-line lift capacity
  • No steel-on-steel moving parts
  • 48:1 gear ratio
  • 48-tooth 6 in. PWC hoist cast iron worm gear
  • 3/4 HP Elite electric motor & PWC gearbox
  • All stainless steel fasteners
