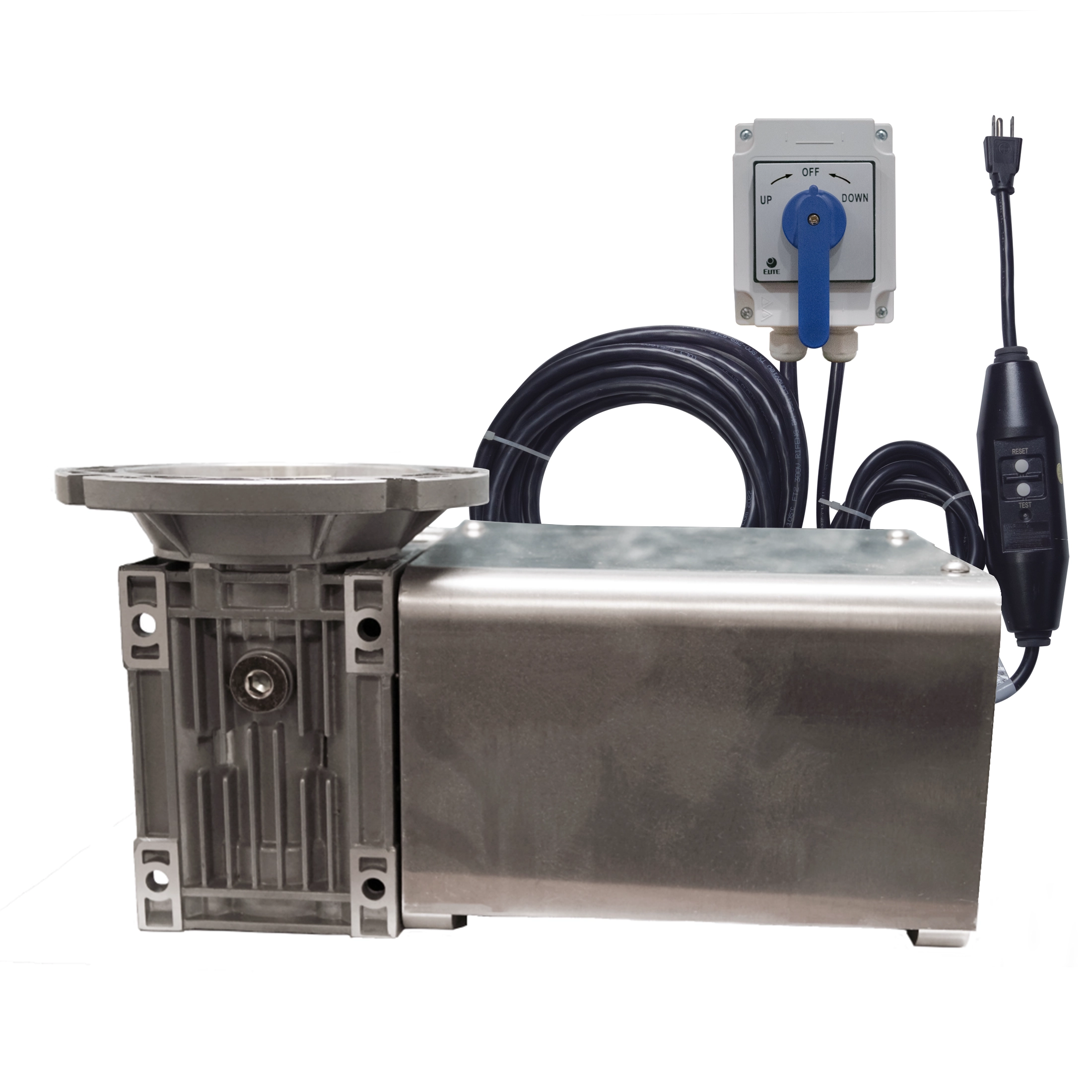

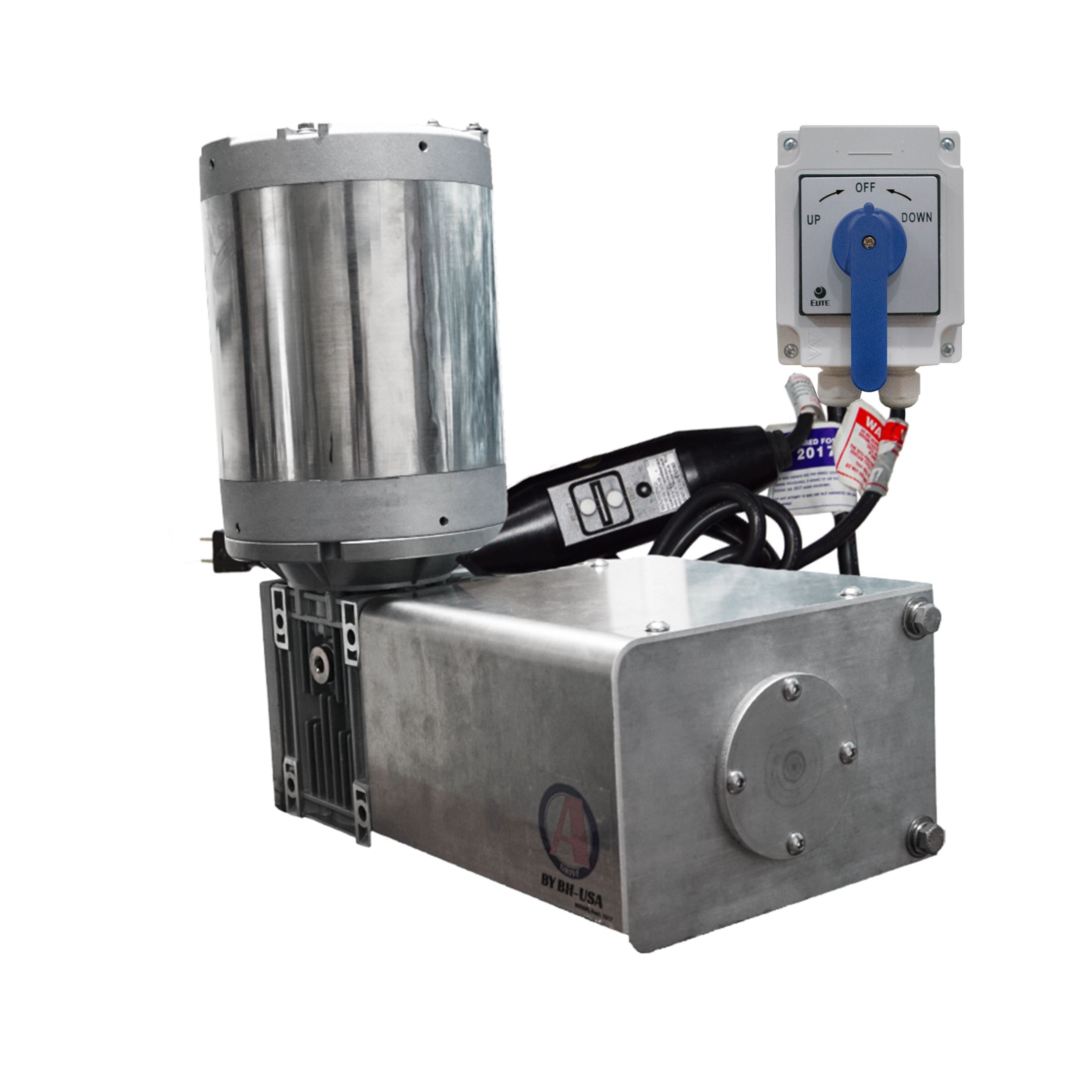

1,500 lb. A-Drive PWC Hoist
The 1,500 lb. A-Drive PWC Hoist is the PWC gearbox and an electric motor combined to make a PWC hoist. 1500 lb. straight-line lifting capacity. Features an A-Drive PWC Single Worm Reducer, bronze bushings, aluminum gear, and spool housing. Features a 1 1/4 in. plated spool. Capable of wrapping 1/4 in. 7 x 19 aircraft cable easily. The spool easily attaches, making the boat lift cable easy to install. 1:100 single worm reducer ratio. 40% faster than belt-driven PWC hoists. Uses a standard 3-hole motor mounting pattern. BH-USA advanced gear technology guarantees not to leak or backspin. Comes assembled from the factory. Works with C-Face direct input electric motors only.
Compatible Replacements:
BH-USA, Hefty Hoist, or AMS belt-driven PWC hoists.
Includes:
Elite 1 HP Stainless Steel C-Face Wired PWC Lift Motor
A-Drive Direct Drive 1500 lb. PWC Hoist Gearbox
Specifications
Gearbox Specifications |
|||
---|---|---|---|
Material: | Aluminum | Worm Reducer Size: | Single |
RPM: | 18 | Lifting Capacity: | 1,500 lbs. |
Travel Speed: | 4.5 ft. / min. (1 HP) | Gear Ratio: | 1:100 |
Hoist Speed: | 40% faster than Belt-Driven Hoist | Motor Mount Type: | 56c |
Length: | 14 in. | Cable Size: | Up to 0.25 in. |
Width: | 10.25 in. | Cable Type: | 7 x 19 Aircraft |
Height: | 6.875 in. | Weight: | 29.27 lbs. |
Gearbox Technical Specifications |
|||
Drive Pipe Output Shaft: | 2 3/8 in. OD (2 in. ID) | Motor Output Shaft: | 1.125 in. |
Bearings: | Bronze | Lubrication Type: | Specially Blended |
Gearbox Length: | 8 9/16 in. | Spool Box Length: | 8.5 in. |
Gearbox Width: | 6 1/2 in. | Spool Box Width: | 8.5 in. |
Gearbox Height: | 7 in. | Spool Box Height: | 5.5 in. |
Gearbox Weight: | 13.7 lbs. | Spool Box Weight: | 16 lbs. |
Spool Holds: | 112 in. (0.25 in. Cable) | Spool Length: | 5.125 in. |
Mounting Holes: | 3 | Spool Width: | 5 in. |
Mounting Hole Size: | 0.5 in. | Spool Height: | 5 in. |
Mounting Pattern: | Triangle | Fits: | 3/4 HP / 1 HPÂ |
Mounting Slot Size: | 1.0625 in. x 0.5625 in. | Mounting Slots Amount: | 2 |
Mounting Hole Size: | 0.5625 in. x 0.5625 in. | Mounting Holes: | 1 |
Motor General Specifications |
|||
Weight: | 28.60 lbs. | Individual Box Size: | 15 in. x 10 in. x 10 in. |
Product Length: | 10.75 in. | Product Width: | 6.50 in. |
Product Height: | 9.0 in. | Shaft Width: | 0.625 in. |
Shaft Length: | 2 in. | Country of Origin: | China |
Model #: | 93048 | Retail SKU: | 93091 |
Motor Nameplate Specifications |
|||
HP: | 1 | Voltage: | Dual (115v / 230v) |
Phase: | 1 | Amps: | 15.6Â (115v) /Â 7.8Â (230v) |
RPM: | 1725 | Hz: | 60 |
Frame: | 56c | Service Factor: | 1.15 |
SFA: | 17.5Â (115v)Â / 8.75Â (230v) | Type: | C |
AMB: | 40°c | Time: | 15 MIN |
HSG: | TENV | Code: | H |
Insulation: | F | Thermally Protected: | None |
UL: | Recognized | UL Stamp: | C-UL-US |
Motor Technical Specifications |
|||
Electrical Type: | Capcitor Start | Rotation: | Selective |
Shaft Type: | NEMA 56 | Shaft Extension: | 1.88 in. |
Frame Length: | 9.0Â in. | Mounting: | Round |
Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
Frame Material: | Stainless Steel | Replacement Capacitor: | 800 uF |
Capacitor SKU #: | BH02246 | Keystock: | Included |
Keystock Length: | 1 in. | Keystock Width: | 0.25 in. |
Switch Specifications |
|||
Momentary | |||
Model #: | CA0200034I-B96IQ6R | BH-USA SKU #: | BH09015 |
Housing Length: | 4.5 in. | Handle Length: | 3 in. |
Housing Width: | 3.5 in. | Handle Width: | 1.1875 in. |
Housing Height: | 4.5 in. | Handle Height: | 1.3125 in. |
Box Color: | Light Grey | Handle Color: | Red |
Country of Origin: | Italy | Weight: | 1.25 lbs. |
Technical Specifications |
|||
Momentary |
|||
Amps: | 20 | Certification: | EN 60947-3 |
VAC | 600 | Certification: | CE |
Torque: | Tight | Certification: | C-UL-US Listed |
Cam Diagram |
|||
— | 230v | 400v | 690v |
AC3-kW(A) 1 ph | — | 3.7(12) | — |
AC3-kW(A) 3 ph | 4(13) | 7.5(14) | 7.6(8) |
AC-23-kW(A) 1 ph | 3(17) | — | — |
AC-23-kW(A) 3 ph | 6.5(17) | 9(9) | 9(9) |
VAC Diagram |
|||
HP/V | 1 ph | 3 ph | — |
120 | 1.6 | Â Â — | — |
200 | Â — | 5 | — |
240 | 3 | 7.5 | — |
480 | Â — | 10 | — |
600 | Â — | 10 | — |
GFCI Wire Harness Specifications |
|||
110v | |||
Manufacturer: | Southwire Company | GFCI to Plug: | 4.5 in. |
Plug Type: | 3-US 110 V Standard | Cord Dia. Range: | 0.28 in. – 0.65 in. |
VAC: | 125 | Country of Origin: | Honduras |
Hz: | 60 | UL: | Listed |
Amps: | 15 | CSA: | Certified |
Watts: | 1875 | Reset Button: | Yes |
Type: | Rainproof Class A | Reset Type: | Automatic |
GFCI Type: | In-line | BH-USA SKU: | 12211 |
Cable Type: | 14/5 SJTW | Catalog #: | 303385214 |
Product Overview
- 1500 lb. straight-line lifting capacity
- Fits most dockside PWC hoists/lifts
- Features a single worm reducer
- Works with C-Face direct input electric motors only
- 40% faster than belt-driven PWC hoists
- 1:100 worm gear ratio
- Spool accepts up to 1/4 in. 7 x 19 aircraft cable
- The boat lift cable is easy to install
