4K Aluminum Four Post Top Beam
$ 1,047.75
UPC: 091037175045
SKU: 17504
Only 9 left in stock
Return Policy
4K Aluminum Four Post Top Beam

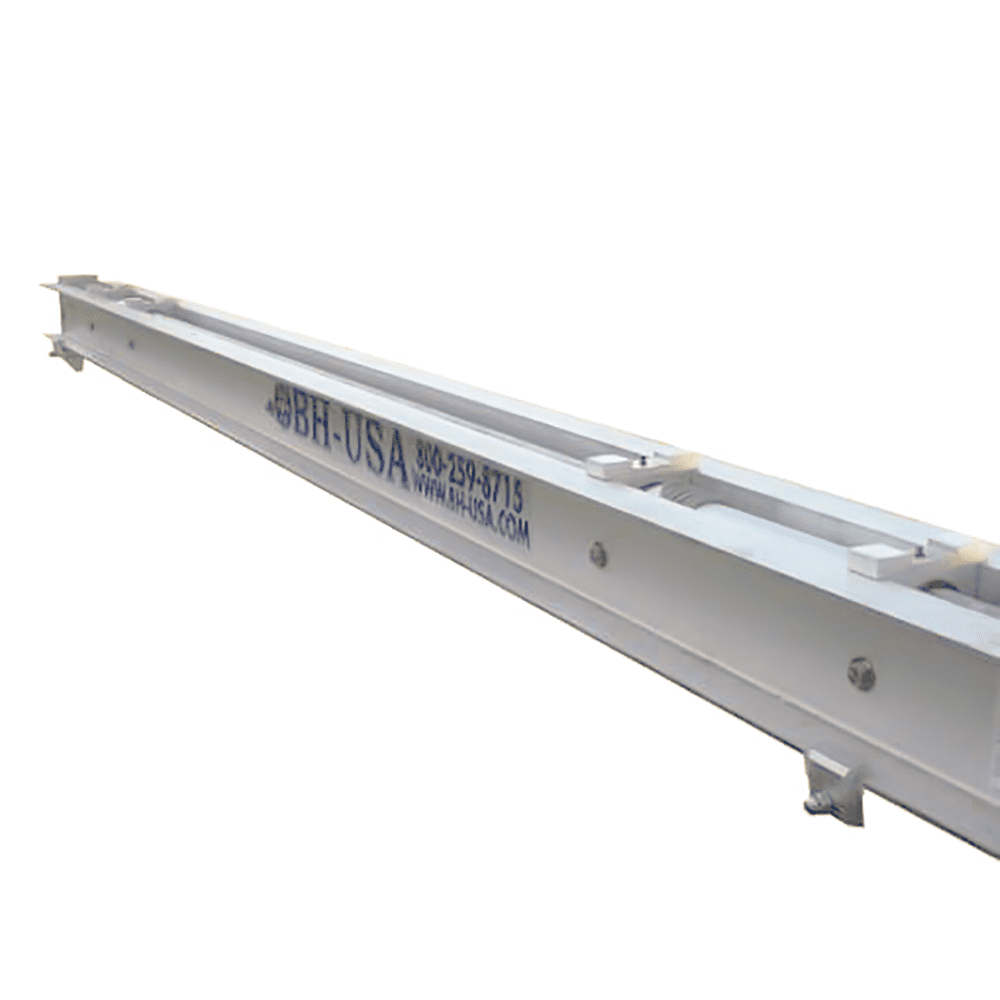

The 4K Aluminum Four Post Top Beam mounts to the top of two dock pilings per top beam. Made from 6061-T6 US aluminum. The top beam measures 12 foot 6 inches. The drive pipe measures 11 ft. 11 1/2 in. x 1 1/2 in. inner diameter. The drive pipe is made from schedule 40 galvanized steel. The drive pipe is drilled out for a hoist to fit. The bronze bearings have 1/4 in. easy-to-reach grease fittings. Includes all stainless steel mounting fasteners.
Includes
Top Beam – 5 in. x 2 1/4 in. x .260/.150 x 12 1/2 ft.
15 ft. 5/16 in. boat lift Cable
Single direction 1 1/2 in. ID cable winder
Aluminum bearing blocks w/ bronze flange bushing
Hoists, pile mount brackets, side mount brackets, and hoist mount brackets are not included.
| Single Beam Capacity | Dual Beam Capacity | Minimum Piling Requirements | Boat Lift Usage |
| 4,000 lbs. (4K) | 8,000 lbs. (8K) | 4 | 6,000 lbs. (6K) – 8,000 lbs. (8K) |
| 5,000 lbs. (5K) | 10,000 lbs. (10K) | 4 | 9,000 lbs. (9K) – 10,000 lbs. (10K) |
| 10,000 lbs. (10K) | 20,000 lbs. (20K) | 4 | 12,000 lbs. (12K) – 20,000 lbs. (20K) |
| 12,000 lbs. (12K) | 24,000 lbs. (24K) | 6 | 20,000 lbs. (20K) – 24,000 lbs. (24K) |
Specifications
| Top Beam Specifications | |||
| Length: | 12 1/2 ft. | Designation:: | 2.212 wt./in. ft. |
| Width: | 2 1/4 in. | Beam Type: | Channel |
| Height: | 5 in. | Lifting Capacity: | 4,000 lbs. / beam |
| Material: | Aluminum | Material Type: | 6061-T6 |
| Drive Pipe Specifications | |||
| Length: | 12 ft. 4 1/2 in. | Finish: | Hot-dipped galvanized |
| Diameter: | 1.5 in. (ID) | Type: | Sch. 40 |
| Aluminum Bearing Block Specifications | |||
| Length: | 4 7/8 in. | Material: | Aluminum |
| Width: | 1 1/2 in. | Type: | 6061-T6 |
| Height: | 5 3/4 in. | Weight: | 2.4 lbs. |
| Bushing Type: | Bronze Flange | Bushing Flange Bore: | 1 7/8 in, |
| Bearing Surface: | 1 5/8 in. | Maintenance: | Grease-able |
| Mounting Hole Amount: | 3 | Grease Fitting Amount: | 1 |
| Mounting Hole Size: | 9/26 in. | Grease Fitting Size: | 1/4 in. |
| Cable Specifications | |||
| Length: | 15 ft. | Material: | Stainless Steel |
| Diameter: | 5/16 in. | Designation: | Aircraft Cable |
| Min. Breaking Strength: | 9,000 lbs. | Type: | 7 x 19 |
| Cable Winder Amount: | 2 | Winder Type: | Single Direction |
| Fits: | 1.5 ID Drive Pipe | Winder Style: | Side Mount (Boat Lift Style) |
| Fastener Material: | Stainless Steel | Fastener Size: | 1/2 in. & 5/16 in. |
Product Overview
- No-weld aluminum design
- Stainless steel fasteners
- Fits on 4 dock pilings
- Includes cable winder, cable, and mounting fasteners
- 1.5 ID galvanized drive pipe
- Bronze bearings with 1/4 in. easy-to-reach grease fittings
