BH-360 PWC Lift Kit (No Ride Pipe)

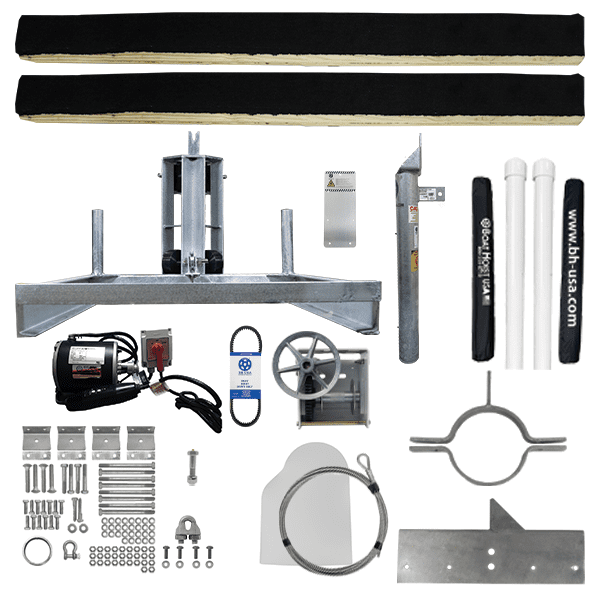

With this BH-360 PWC Lift Kit (No Ride Pipe) you get the complete BH-360 kit but without the ride pipe. All items ship on a pallet. Main housing, hoist, and guidepost kits are included. Straight-line lifting capacity of 1,250 pounds.

Complete 360-degree rotation. Easy to store and maintain. Allow at least 18 inches of pipe penetration into the clay bottom. The drum switch should be mounted in a location that cannot be reached from the watercraft. Install the BH-360 as directed by the BH-360 lift guide.

BH-360 PWC Lift Kit (No Ride Pipe) This kit does not include a ride pipe.

Specifications

Hoist Type: Direct-Drive Belt-Driven
Lift Capacity: 1,250 lbs. 1,250 lbs.
Cable Configuration: Straight Line Straight Line
Lift Speed: Up to 4 ft. / min. Up to 2 ft. / min.
PWC Main Housing Dimensions: 32 in. L x 36 in. W x 6 3/8 in. H 32 in. L x 36 in. W x 6 3/8 in. H
Bunk Mount Frame Dimensions: 36 in. L x 50 1/2 in. W 36 in. L x 50 1/2 in. W
Main Housing Roller Amount: 4 4
Cradle Bunks Included: 2 2
Cradle Bunk Type: Wood Wood
Cradle Bunk Cover: Marine-grade carpet Marine-grade carpet
Cradle Bunk Cover Color: Black Black
Cradle Bunk Width: Adjustable Adjustable
Pile Mount Plate Dimensions: 18 1/2 in. L x 4 1/2 in. W x 1 1/2 in. H 18 1/2 in. L x 4 1/2 in. W x 1 1/2 in. H
Dock Mount Plate Dimensions: 24 in. x 3 in. x 7 in.  24 in. x 3 in. x 7 in.
Worm Reducer Size: Single N/A
Gear Ratio: 1:100 48:1
Gearbox Material: Aluminum Cast iron
Worm Material: N/A Hardened bronze
Worm Thread: N/A Single
Worm Bore: N/A 3/4 in.
Drive Pipe Output Shaft: 2 3/8″ OD (2″ ID) 2 3/8″ OD (2″ ID)
Motor Output Shaft: 1.125 in. N/A
Lubrication Type: Specially blended N/A
Bearings: Bronze N/A
Spool Dimensions: 5 in. x 5 1/8 in. 1 1/2 in. (dia.) x 3 11/15 in.
Travel Speed:: 4 1/2 ft. / mi.  2 ft. / min.
Spool Holds: 112 in. (1/4 in. cable)  N/A
Mounting Holes: 3 4
Mounting Hole Size: 1/2 in. 1/2 in.
Mounting Pattern: Triangle  Rectangular
Mounting Slots: 2  4
Slot Size: 1 1/16 in. x 9/16 in.  N/A
Round Size: 9/16 in. x 9/16 in.  9/16 in. x 9/16 in.
Motor Mounting Style: C-Face Clawfoot
Hoist Speed: 40% faster than belt-driven  2 ft. / min.
Motor Size: 1 HP 3/4 hp
Motor Brand: Elite Motors Elite Motors
Model #: 93048 93197
Max Run Time: 15 Minutes 15 Minutes
Dimensions: 9 in. x 10 1/2 in. x 6 1/4 in.  9 in. x 11 in. x 6 in.
Weight: 33 lbs.  26.3
Horsepower: 1  3/4
Mounting Type: C  56
RPM: 1725  1725
Service Factor: 1.15  1
Voltage: 115 / 230  115v / 230v
Phase: 1  1
Amps: 7.8  11.4 (110v) / 5.6 (220v)
SFtartA: N/A  12.4 (110v) / 6.2 (220V)
Herz: 60  60
AMB: 40c  40c
Frame: 56c  56
HSG: TENV  TENV
Code: L  K
Insulation: A  B
Shaft Diameter 5/8 in. 5/8 in.
Drum Switch Type: Momentary  Momentary
Drum Switch Dimensions: 3 1/2 in. x 4 1/2 in. x 4 1/2 in. 3 1/2 in. x 4 1/2 in. x 4 1/2 in.
Drum Switch Max Amps: 20 20
Drum Switch Max HP: 1 1/2 HP  1 1/2 HP
Drum Switch Compliance: UL, NEMA, CE, SA  UL, NEMA, CE, SA
Drum Switch VAC: 120v – 240v  120v – 240v
Drum Switch Weight: 1.2 lbs. 1.2 lbs.
Drum Switch Box Color: Gray Gray
Drum Switch Handle Color: Red Red
Drum Switch Type: Varies Varies
Housing Material: Plastic Plastic
GFCI Plug Type: 3-US 110 V Standard 3-US 110 V Standard
Plug Cord Length: 6 in. 6 in.
GFCI to Switch Cord Length: 6 ft. 6 ft.
GFCI Dimensions: 7 in. x 2 1/2 in. x 1 in. 7 in. x 2 1/2 in. x 1 in.
GFCI Color: Black Black
GFCI Class: A-Rainproof A-Rainproof
GFCI Catalog Number: 303385214 303385214
GFCI AMP: 15 15
GFCI Hz: 60 60
GFCI Watt: 1875 1875
GFCI Volt: 125 125
Reset Type: Automatic Automatic
Cord Diameter Range: .28 – .65 .28 – .65
Lift Cable Type: 7 x 19 aircraft cable 7 x 19 aircraft cable
Cable Size: 1/4 in. (Compounded) 1/4 in. (compounded)
Cable Type: Stainless Steel Galvanized steel
Lift Fasteners: Stainless Steel Galvanized, zinc-plated
Shipping Method: Freight Freight
Shipping Type: Pallet Pallet

BH-360 PWC Lifts are designed to lift watercraft weighing up to 1,250 pounds. You should not modify the configuration to support wider boats. It is not recommended to ride the lift when it is being raised or lowered. Our lifts are not designed to lift people. Install the BH-360 as directed by the BH-360 lift guide. Allow at least 18 inches of pipe penetration into the clay bottom. Attach the pile mount brackets to the dock mounting plate. You can purchase additional pile mounts. A boat lift should never be operated with an extension cord or generator. The drum switch should be mounted in a location that cannot be reached from the watercraft.

Product Overview

  • 360-degree turn radius when raised
  • Includes guideposts, housing, and hoist
  • Easy to install in boathouses
  • Includes carpet wood bunks
  • Ships freight on a pallet
