Boat Cradle Guidepost

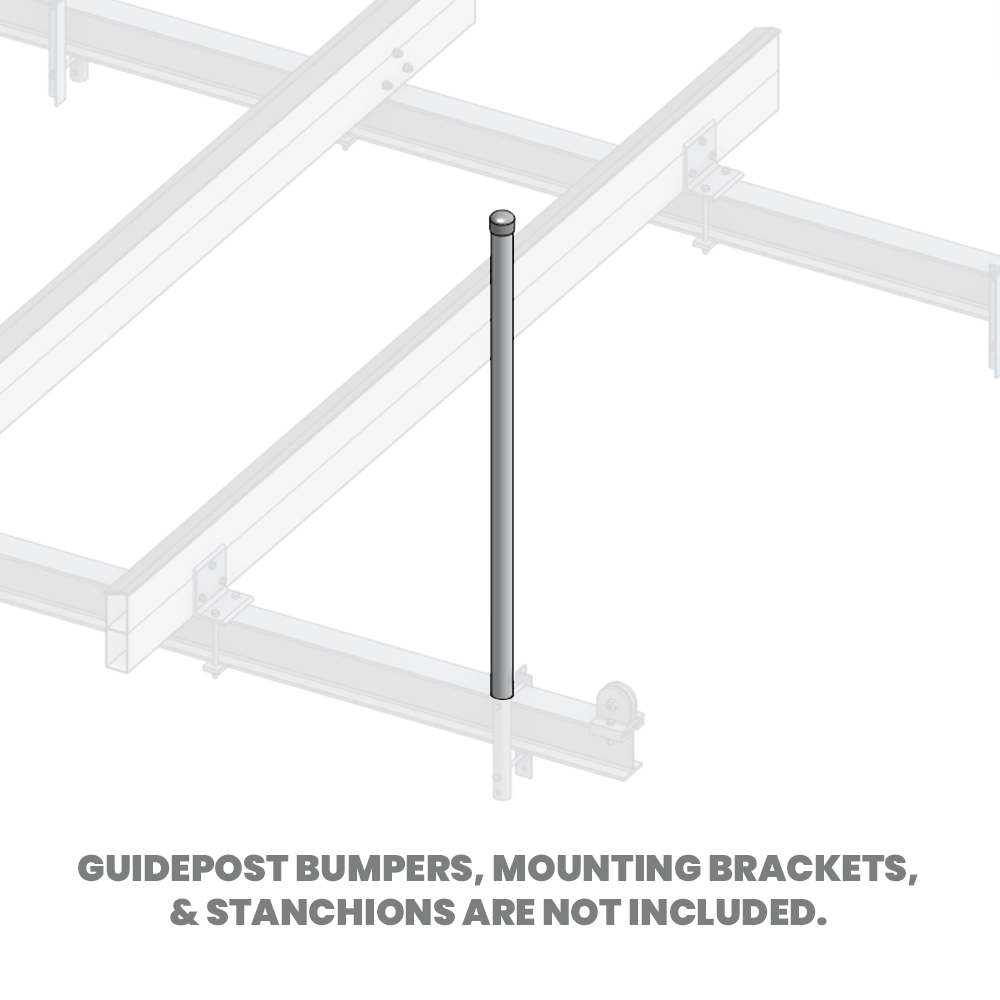

The boat cradle guideposts are attached to the guidepost stanchion on the bottom of the boat cradle. The diameter of the outer tube is 2 3/8 inches and the inner tube is 2 inches in diameter. The tube is made from PVC 1120 type 1 sch 40. The wall thickness of this tube is approximately 3/16 inches. To allow water to drain when lifting and lowering the boat, the top cap is drilled with a 1/4-inch diameter hole. It is made of ASTM D 2665-certified PVC. The drain hole can be found in the white cap that is attached to the end of the white pipe.
The guidepost bumpers are optional. With the bumpers, it is easier to see the guideposts when entering or exiting the boat slip.
ASTM D 2665
A specification for poly (vinyl chloride) plastic drain, waste, and vent pipes and fittings.
PVC Schedule 40
Extremely durable, with high tensile and impact strength. Unlike PVC Schedule 40 DWV Foam Core, this material is easy to install and provides better sound absorption.
|Compound:||PVC 1120 Type 1 Sch. 40|
|Rating:||ASTM D 2665|
|PSI:||@ 23° C|
|Pipe Width (OD):||2 3/8 in.|
|Pipe Width (ID):||2 in.|
|Top Cap Modifications:||Drilled|
|Hole Size:||1/4 in.|
|Fits:||BH-USA guidepost stanchions|
- Drilled hole in the cap allows water to drain
- Made from PVC with cap installed at one end of the pipe
- Fits on BH-USA guidepost stanchions mounted to boat cradles
- Various sizes for shorter or taller guideposts
- 2 3/8 in. OD (2 in. ID) Sch. 40 PVC pipe
