BH-360 PWC Belt-Driven Hoist Cover

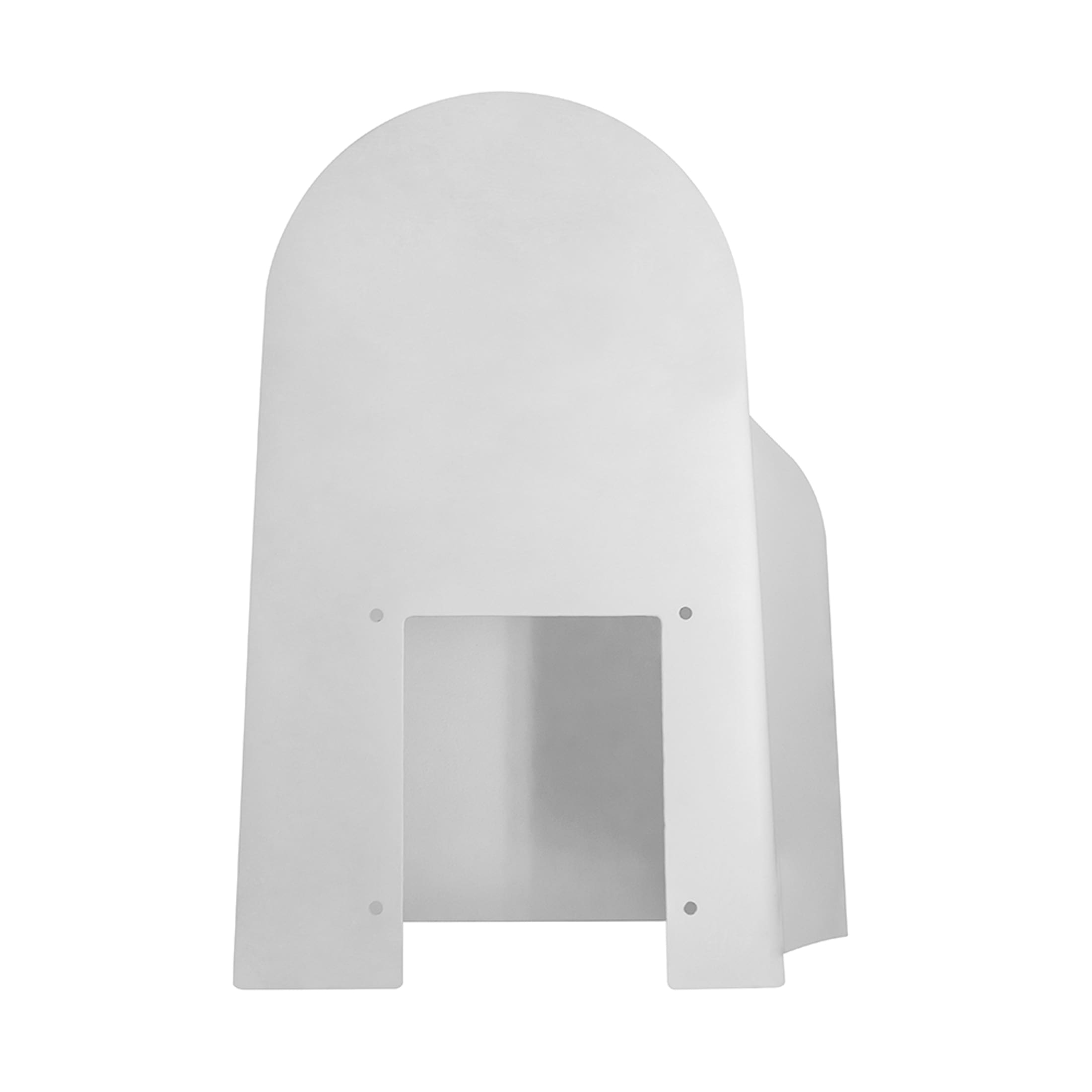

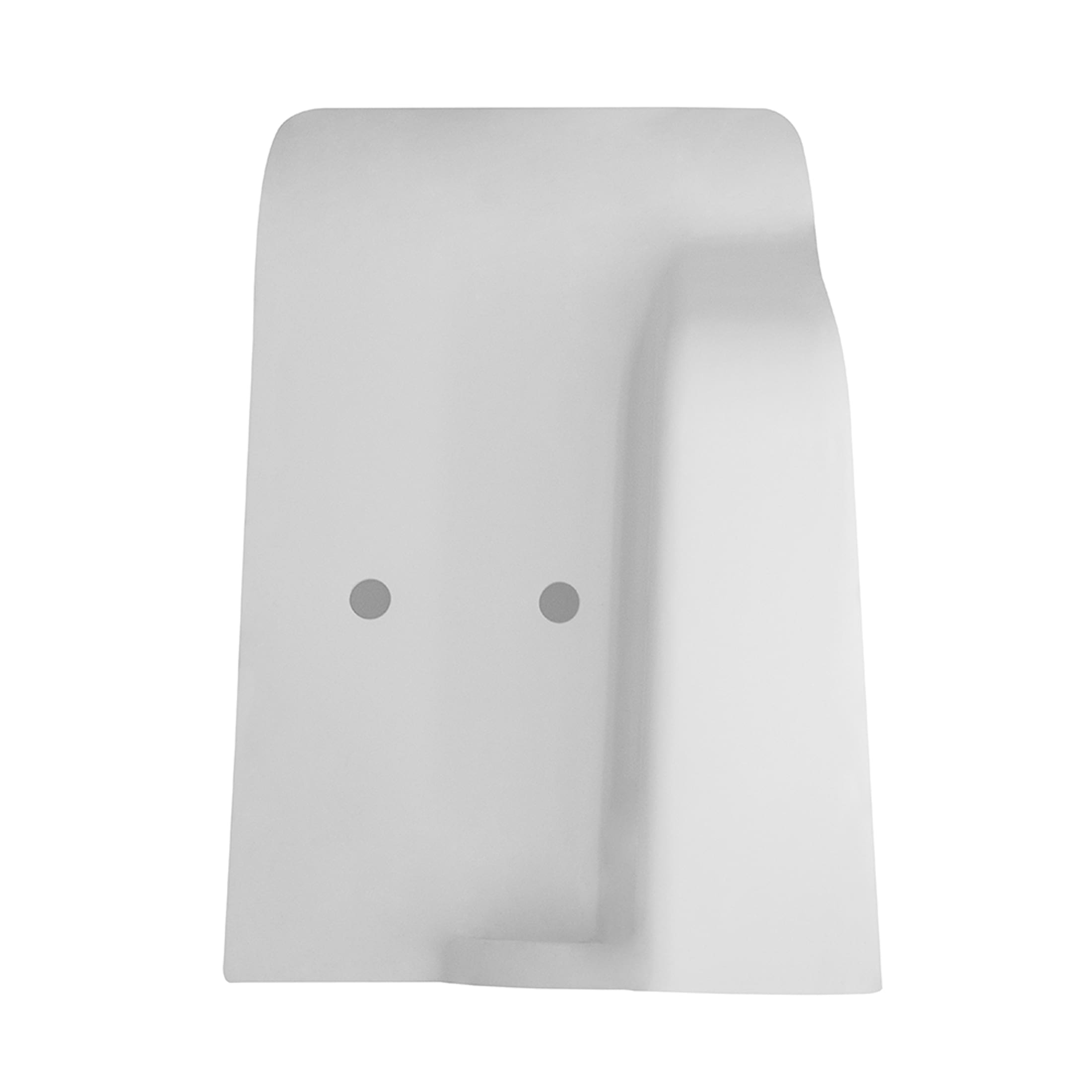

The BH-360 PWC Belt-Driven Hoist Cover installs over the 1,500 lb. belt-driven PWC hoist. Made from hardened, polyurethane plastic. UV protected. Molded white. Allows the motor wiring to exit from the bottom of the cover. Fits over Elite or Marathon 3/4 HP petite electric motors. Measures 13 in. x 10 1/2 in. x 18 in. The cover mounts using the (4) screws and washers. Mounting fasteners included. The fasteners match the thread holes on the back of the 1,500 lb. belt-drive PWC hoist.

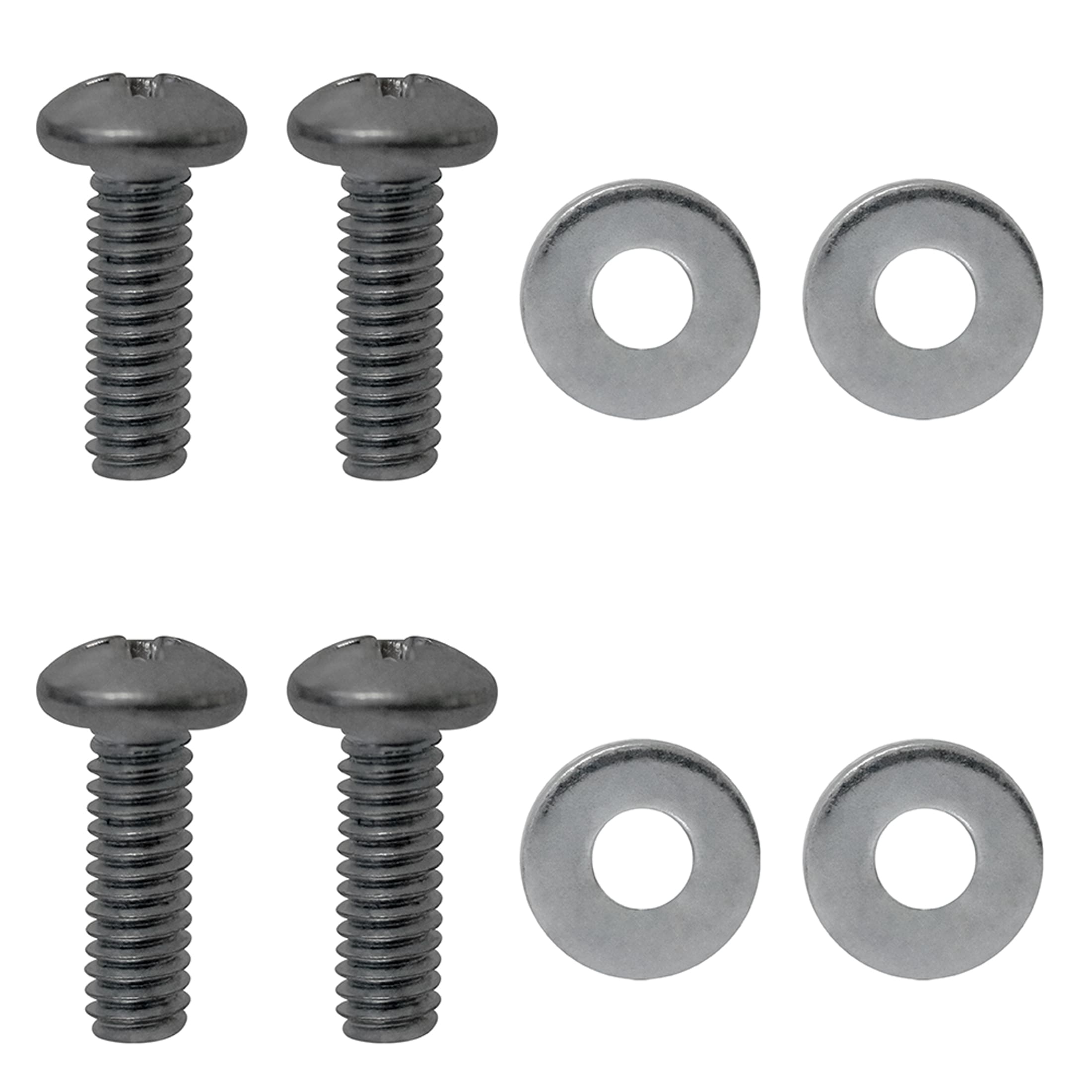

(4) #8 Pan Head 1/2 in. Screws
(4) #8 Zinc Washers
For Use on BH-USA Belt-Driven PWC hoists only. Not compatible with other brands of PWC Hoists.
|Dimensions:||13 in. x 10 1/2 in. x 18 in.|
|Cover Type:||PWC (BH-360 / Belt-Driven Hoists)|
|Screw Type:||Pan head|
|Screw Size:||1/2 in.|
|Washer Size:||1/2 in.|
|Shipping Box Size:||14 in. x 12 in. x 20 in.|
- UV protected
- Hardened polyurethane plastic
- Fits 1,500 lb. PWC belt-driven hoists
- Wire opening at the bottom of the cover
- Mounting fasteners included
