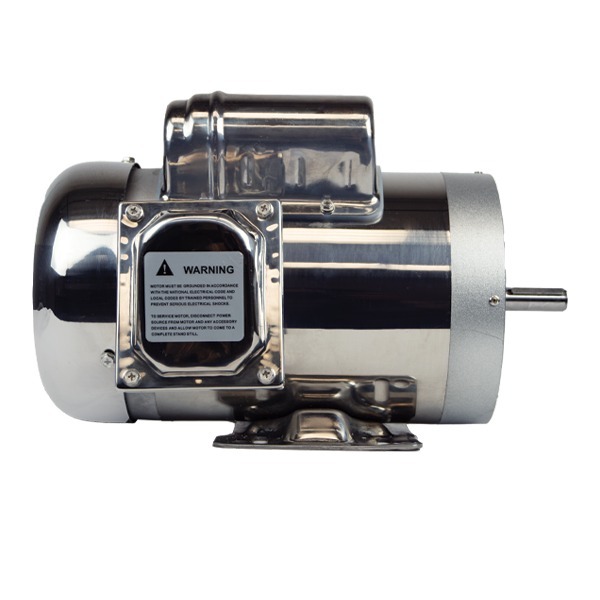

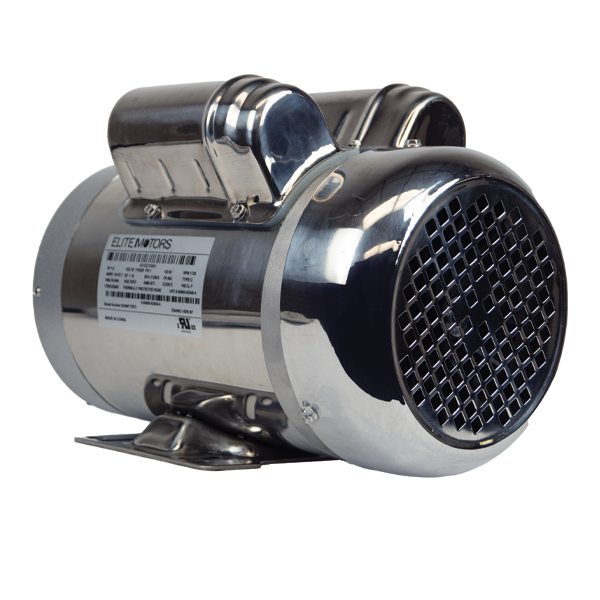

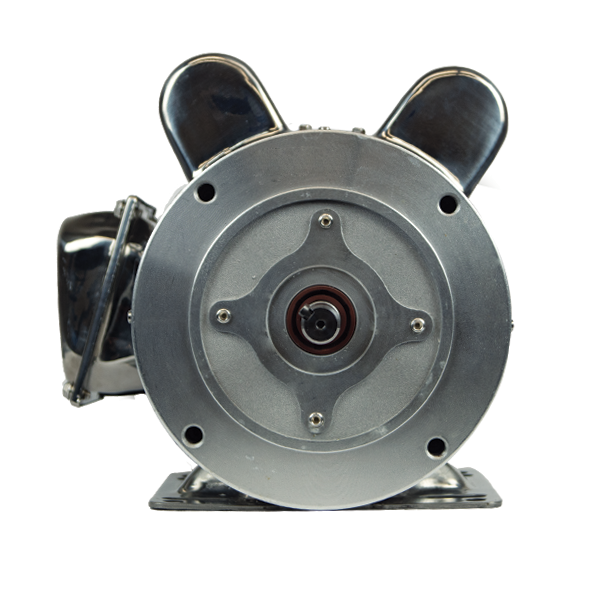

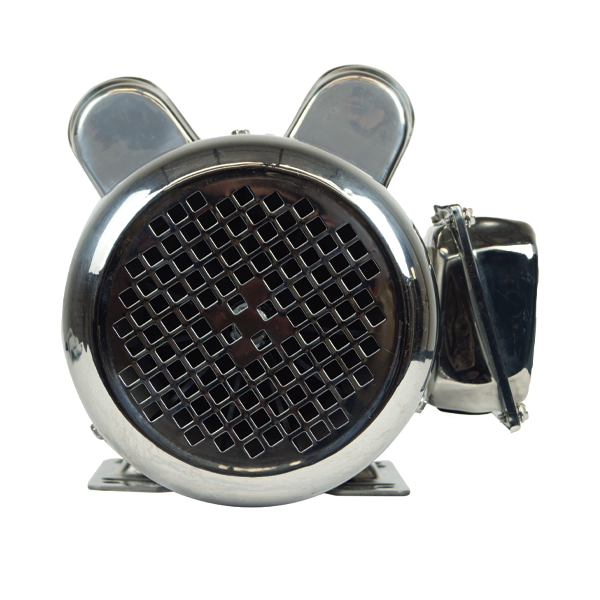

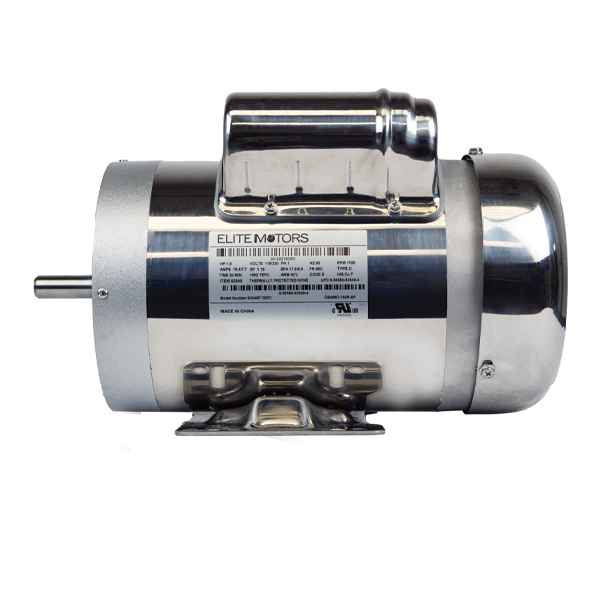

1.5 HP Elite TEFC Stainless Electric Motor With Base

$ 499.99
SKU: 97335
UPC: 658580973353

UNAVAILABLE

Free Shipping
×

Free Shipping

BH-USA offers free shipping for retail customers on select items. Products eligible for free shipping will be shipped via UPS Ground. We offer expedited services for those individuals that require a more time-sensitive delivery time. If you add any items that are not free shipping, the cart will calculate and display a shipping price based on ONLY the items that are not free shipping. Whenever free shipping is available, it will appear above the "Add to Cart" button on the product page.

Qty.




1.5 HP Elite TEFC Stainless Electric Motor With Base

The 1.5 HP Elite TEFC Stainless Electric Motor With Base is a totally enclosed, fan-controlled single-phase, dual-voltage boat lift motor. The welded base of the motor is compatible with standard mounting patterns found on flat-plate gear plates, which are commonly used in boat hoists to lift and lower boats. These motors are ideal for use in boat houses and areas with limited ventilation.

The motor has a power of 1.5 horsepower (HP) and can run on either 115 volts or 230 volts. At 115 volts, it uses 15.4 amps, and at 230 volts, it uses 7.7 amps. It spins at a speed of 1725 revolutions per minute (RPM) with a frequency of 60 Hz. It fits into frame 56c and has a service factor of 1.15. It can handle up to 17.6 amps at 115 volts or 8.8 amps at 230 volts. It’s designed to work in temperatures up to 40°C for a maximum of 30 minutes. The housing is Totally Enclosed Fan Cooled (TEFC) with a code of E. It has insulation class F and is awaiting UL approval with a C-UL-US stamp.

Totally Enclosed Fan Cooled (TEFC)

A Totally Enclosed Fan Cooled motor is an electric motor that is enclosed to prevent the ingress of foreign particles (such as dust and moisture) and is equipped with an external fan for cooling. Unlike Totally Enclosed Non-Ventilated (TENV) motors, TEFC motors use an external fan to circulate air over the motor, helping to dissipate heat generated during operation.

TEFC motors are commonly used in various industrial applications where a higher level of protection against environmental factors is required. The enclosed design with a fan helps maintain the motor’s internal components at a suitable temperature, ensuring efficient and reliable operation.

When wiring or rewiring electrical components, BH-USA recommends hiring a licensed electrician.
Specifications

General Specifications

Weight: 37.35 lbs. Individual Box Size: 15 in. x 10 in. x 10 in.
Product Length: 11.75 in. Product Width: 6.50 in.
Product Height: 8.75 in. Shaft Width: 0.625 in.
Shaft Length: 2 in. Country of Origin: China
Model #: 93049 Retail SKU: 62545

Nameplate Specifications

HP: 1.5 Voltage: Dual (115v / 230v)
Phase: 1 Amps: 15.4 (115v) / 7.7 (230v)
RPM: 1725 Hz: 60
Frame: 56c Service Factor: 1.15
SFA: 17.6 (115v) / 8.8 (230v) Type: C
AMB: 40°c Time: 30 MIN
HSG: TEFC Code: E
Insulation: F Thermally Protected: None
UL: Pending UL Stamp: C-UL-US

Technical Specifications

Electrical Type: Capcitor Start Rotation: Selective
Shaft Type: NEMA 56 Shaft Extension: 1.88 in.
Frame Length: 10.0 in. Mounting: Round
Drive End Bearing: Ball Opp Drive End Bearing: Ball
Frame Material: Stainless Steel Replacement Capacitor: 800 uF
Capacitor SKU #: BH02246 Keystock: Included
Keystock Length: 1 5/16 in. Keystock Width: 3/16 in.

Product Overview

  • TEFC enclosure prevents overheating
  • Durable stainless steel frame, capacitor case, and conduit box cover
  • Double-shielded bearings extend the service life of the motor
  • Time rated 30-minute duty cycle
  • UL Recognized & CSA Approved
  • Suitable for enclosed boat houses
