Elite Boat Lift Drum Switch
Elite Boat Lift Drum Switch

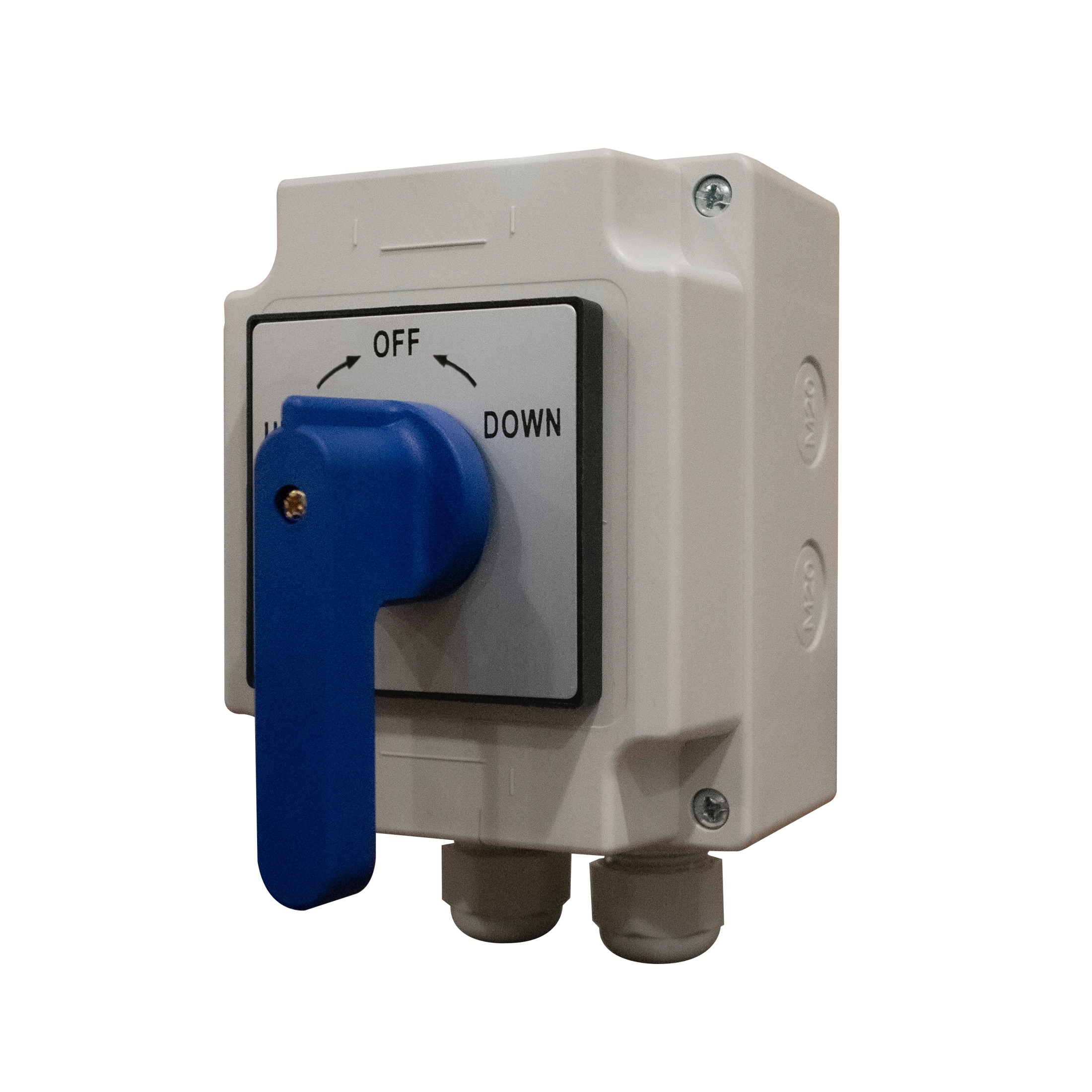

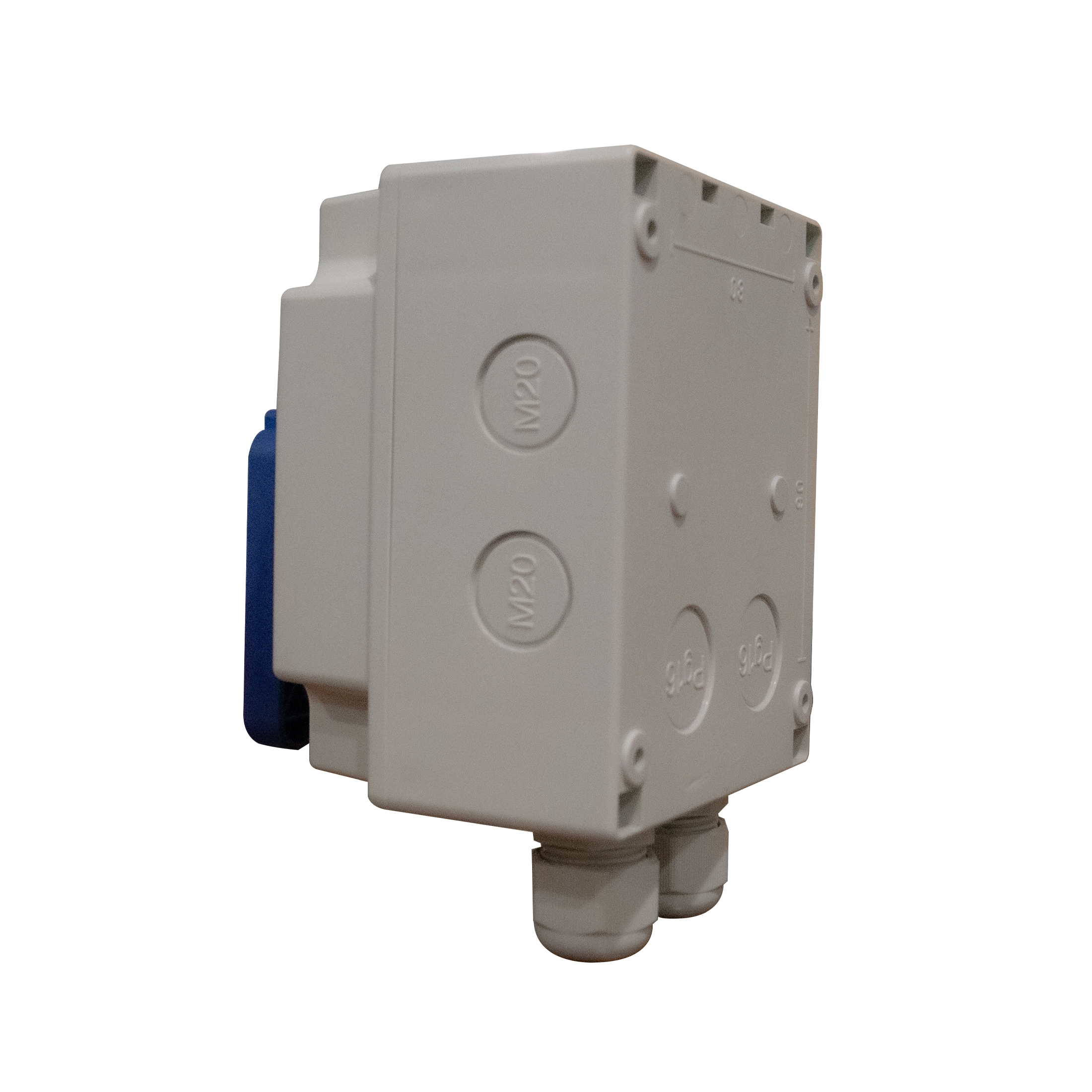

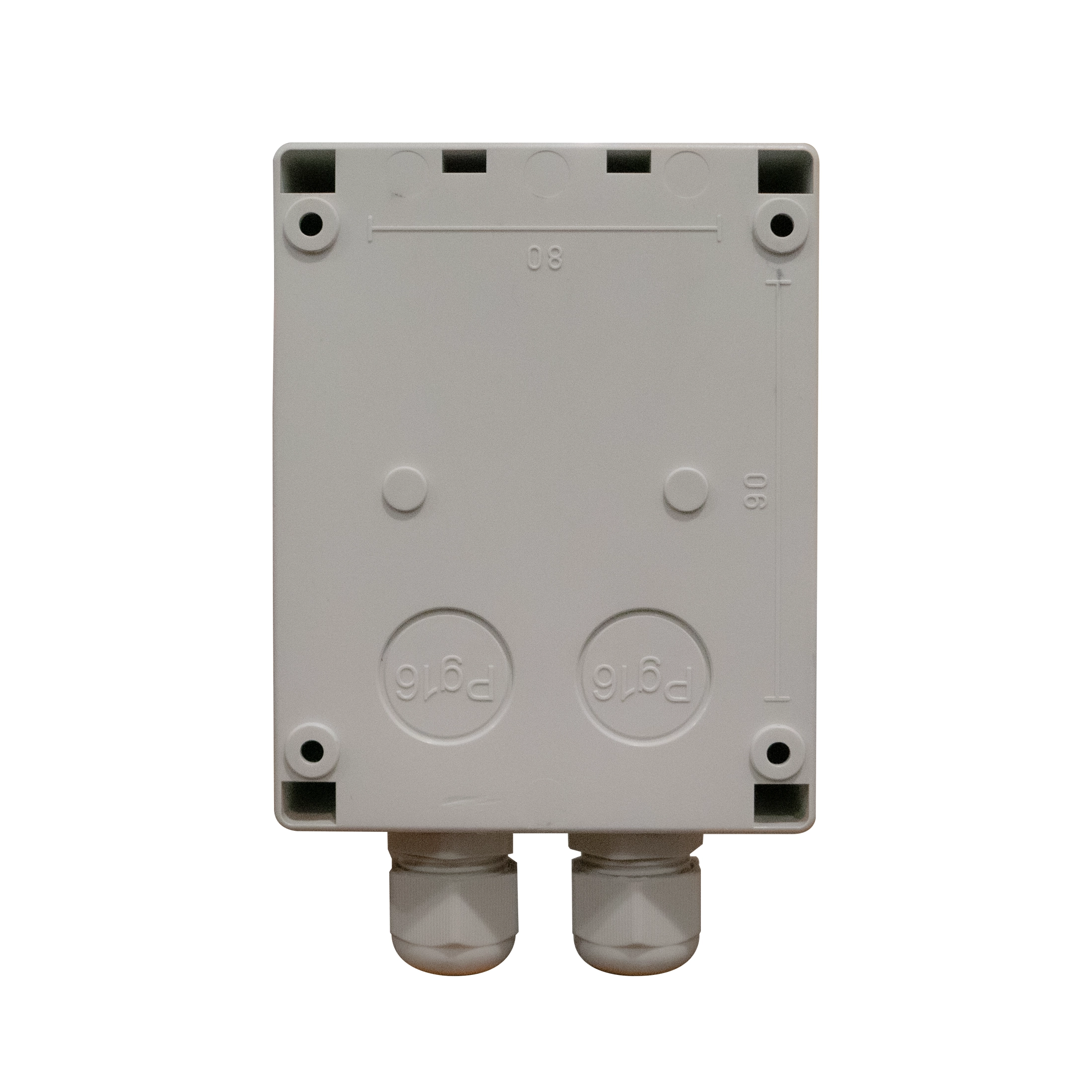

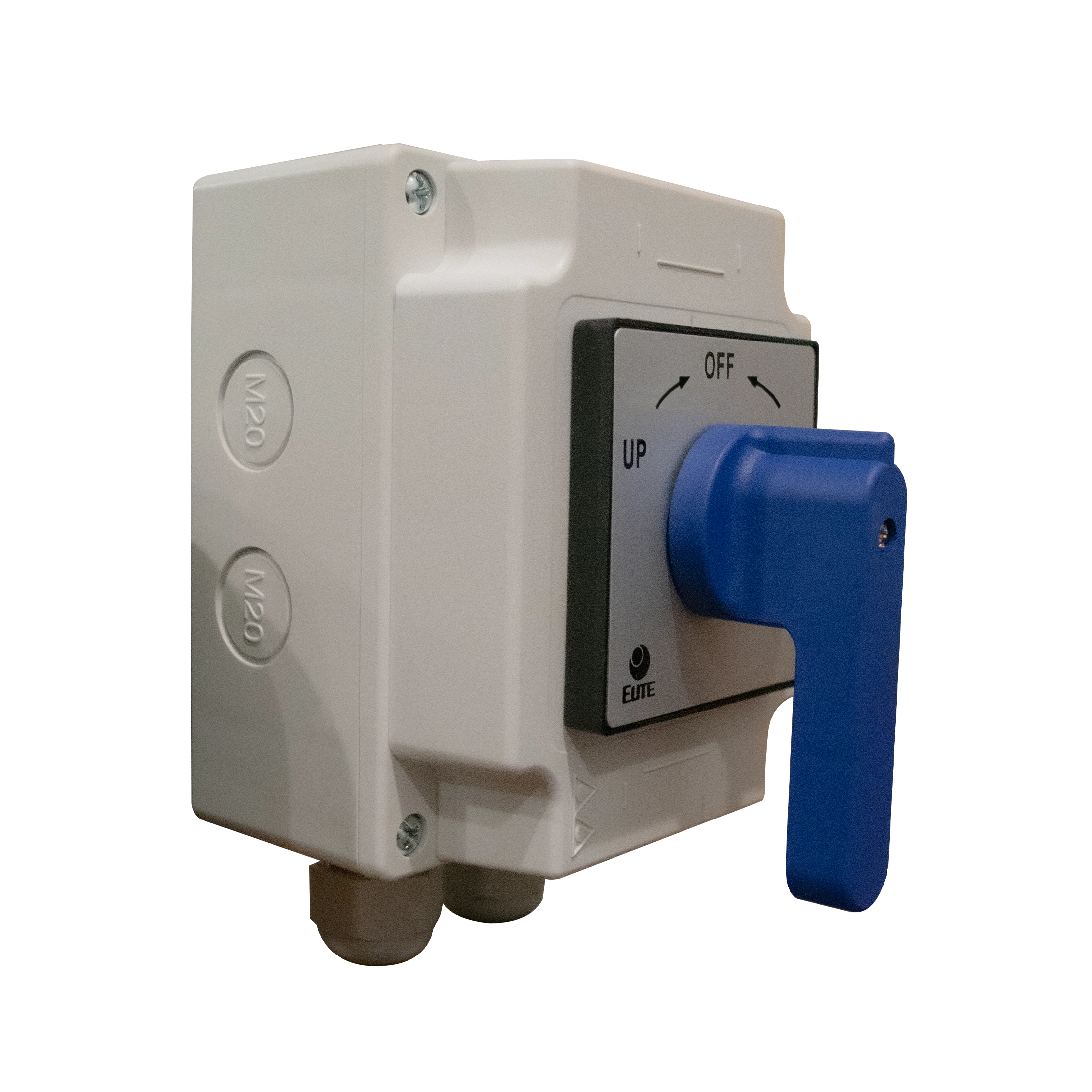

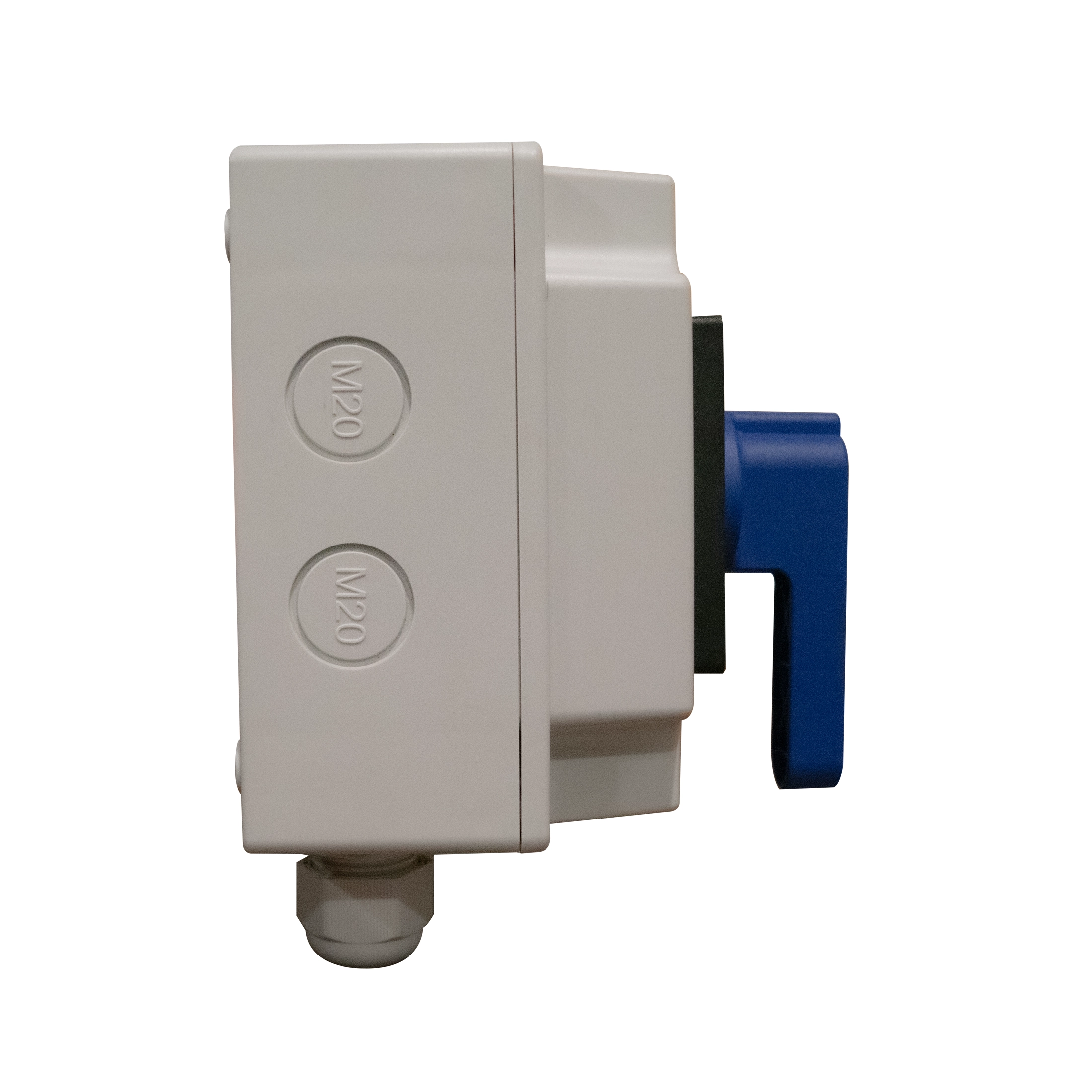

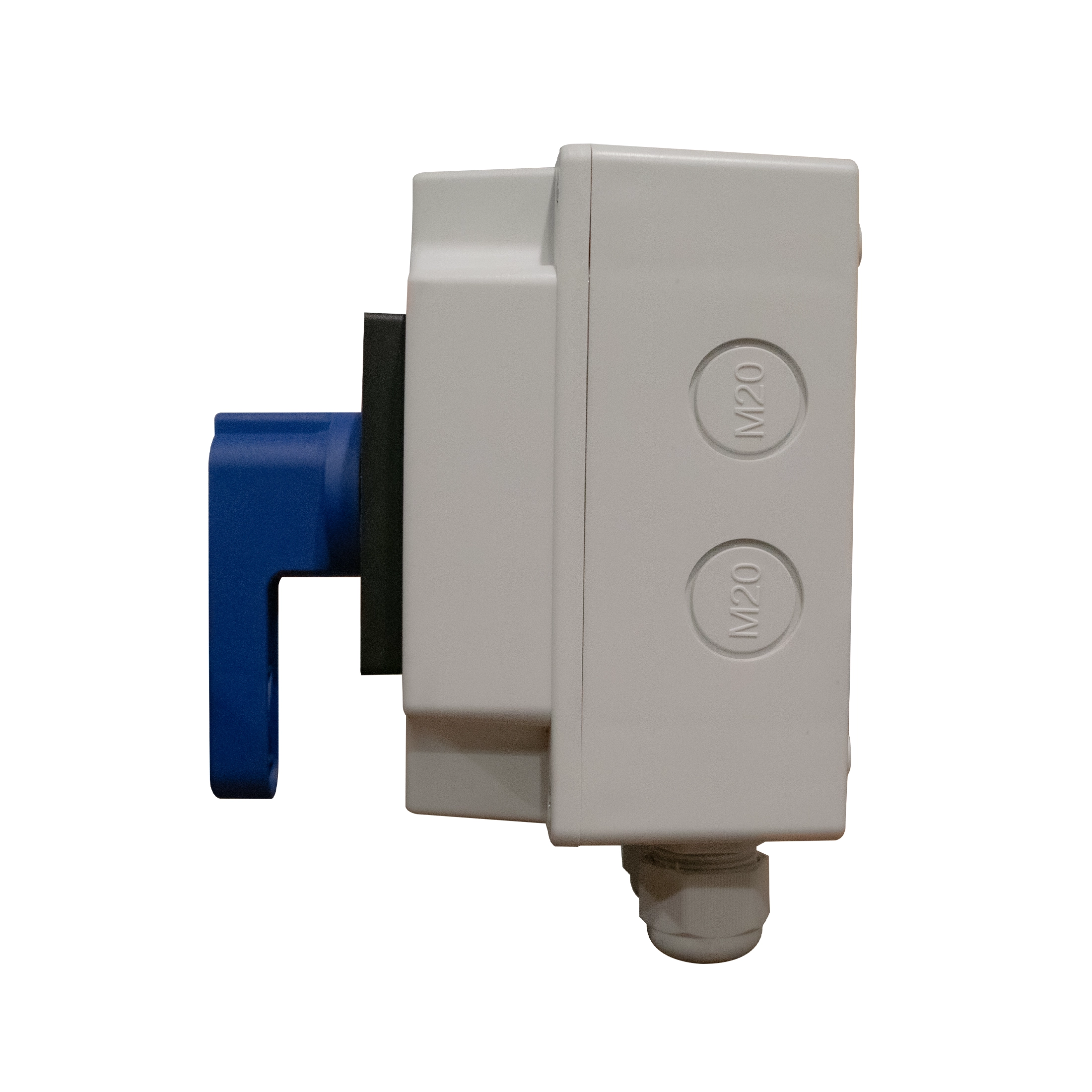

The Elite Boat Lift Drum Switch provides reliable control for raising and lowering your boat lift. Designed for smooth and precise operation, this switch allows you to easily change direction with a simple turn.
Built with durable, weather-resistant materials, it performs well in marine and outdoor environments. Its sturdy construction helps ensure long-lasting use, even in tough conditions.
Ideal for both new installations and replacements, the Elite Boat Lift Drum Switch is a dependable choice for safe and efficient boat lift operation.
Maintained (lock-on) vs. Momentary (spring-loaded)
The maintained (lock-on) drum switch stays in the position you place the handle until manually turned off. It does not have guide arrows on the front plate. The momentary drum switch handle springs back to the off position when it is released. It has guide arrows on the front plate. The momentary (spring-loaded) switch is the safer choice because it won’t operate unless someone is holding the handle.
Specifications
General Specifications |
|||
|---|---|---|---|
Maintained |
Momentary |
||
| Weight: | 1.25 lbs. | Weight: | 1.25 lbs. |
| Box Color: | Light Grey | Box Color: | Light Grey |
| Housing Length: | 4.5 in. | Housing Length: | 4.5 in. |
| Housing Width: | 3.5 in. | Housing Width: | 3.5 in. |
| Housing Height: | 4.5 in. | Housing Height: | 4.5 in. |
| Handle Color: | Blue | Handle Color: | Blue |
| Handle Length: | 3.0 in. | Handle Length: | 3.0 in. |
| Handle Width: | 1.1875 in. | Handle Width: | 1.1875 in. |
| Handle Height: | 1.3125 in. | Handle Height: | 1.3125 in. |
| Country of Origin: | USA | Country of Origin: | USA |
Technical Specifications |
|||
Maintained |
Momentary |
||
| Amps: | 20 | Amps: | 20 |
| VAC | 600 | VAC | 600 |
| Torque: | Tight | Torque: | Tight |
Cam Diagram |
|||
| — | 230v | 400v | 690v |
| AC3-kW(A) 1 ph | — | 3.7(12) | — |
| AC3-kW(A) 3 ph | 4(13) | 7.5(14) | 7.6(8) |
| AC-23-kW(A) 1 ph | 3(17) | — | — |
| AC-23-kW(A) 3 ph | 6.5(17) | 9(9) | 9(9) |
VAC Diagram |
|||
| HP/V | 1 ph | 3 ph | — |
| 120 | 1.6 | — | — |
| 200 | — | 5 | — |
| 240 | 3 | 7.5 | — |
| 480 | — | 10 | — |
| 600 | — | 10 | — |
Product Overview
- UL, NEMA, CE, SA compliant
- Black gasket sealed durable switch housing
- Most boat lift motors are compatible
- Gray box with knockouts for wires and installed blue handle
- 20 amp max & up to 1 1/2 HP motor max
